Choosing between a fabric expansion joint and a metal expansion joint is not simply a question of which product is stronger or which material can withstand the highest temperature. The correct choice depends on how the system moves, what pressure it operates under, what medium passes through it, the size of the duct or pipe, and how much load can be transferred to connected equipment.
In general, fabric expansion joints are highly effective in large, low-pressure duct systems carrying hot air, exhaust gas or flue gas, while metallic bellows are commonly selected for pressurized piping and process systems where pressure containment and mechanical strength are critical.
The following comparison explains where each design performs best and which factors should be evaluated before specifying an expansion joint.
Quick Decision:
Choose a fabric expansion joint when the application involves large ductwork, low pressure, substantial lateral or combined movement, vibration, hot gases or limited allowable reaction loads.
Choose a metal expansion joint when the application involves pressurized piping, steam, liquids, higher mechanical loads or a system specifically engineered around metallic bellows.
| Selection Factor | Fabric Expansion Joint | Metal Expansion Joint |
|---|---|---|
| Typical Service | Industrial ducting and gaseous media | Piping, vessels and engineered process systems |
| Pressure Capability | Primarily low-pressure applications | Can be engineered for substantially higher pressure |
| Large Duct Sizes | Very suitable | Possible, but usually more mechanically complex |
| Axial Movement | Excellent when properly designed | Excellent with suitable bellows geometry |
| Lateral Movement | High movement capability in compact arrangements | Usually requires appropriate bellows configuration |
| Angular Movement | Can accommodate combined movement | Available with engineered configurations |
| Vibration Isolation | Very good flexibility | Application dependent |
| Spring Force | Generally low | Bellows generate measurable spring forces |
| Material System | Composite fabrics, membranes and insulation | Metal alloy bellows |
| Common Media | Hot air, exhaust gas, flue gas, process gas | Steam, liquids, gases and process fluids |
| Typical Geometry | Round, rectangular and large custom shapes | Primarily round, with engineered rectangular designs also available |
One of the easiest ways to begin the selection process is to determine whether the expansion joint is being installed in a large industrial duct or in a pressurized piping system.
A non metallic fabric expansion joint is particularly well suited to large air and gas ducts. These systems are frequently found in power plants, cement facilities, steel mills, industrial furnaces, dust collection systems, combustion equipment and exhaust installations.
The process medium is usually gaseous, and pressure is often relatively low compared with pressurized process piping.
A metallic expansion joint uses thin formed metal convolutions to create flexibility while maintaining pressure containment. Metallic bellows are widely used in steam, process piping, petrochemical, chemical and other engineered systems where pressure is a major design requirement.
This difference in application environment explains many of the performance differences between the two technologies.
Pressure is often the first factor that separates a fabric expansion joint from a metallic bellows.
Fabric joints are primarily intended for low-pressure ducting. Their flexible element consists of coated fabrics, reinforcement layers, sealing membranes and insulation rather than a pressure-containing metallic bellows.
They are commonly found in:
A metallic bellows can be engineered to withstand considerably greater internal pressure. Its convoluted metal wall is designed to provide both flexibility and pressure containment.
This makes metallic expansion joints suitable for applications such as:
Selection rule: If significant system pressure must be contained, metallic bellows should normally be evaluated first. Fabric expansion joints should not be treated as a direct replacement for a pressure-rated metallic bellows.
Movement is where fabric designs become particularly attractive.
A fabric belt can deform over a relatively broad area. This allows it to accommodate substantial axial, lateral and angular displacement without relying on multiple formed metal convolutions.
For large duct systems where thermal growth occurs in more than one direction, this can simplify the expansion joint arrangement considerably.
Metallic bellows can also accommodate these movements, but the bellows configuration must be specifically designed around them.
For example, larger lateral displacement may require a universal metallic expansion joint with multiple bellows and a center pipe rather than a single bellows element.
Therefore, when large lateral or combined movement is required in a low-pressure duct, a fabric expansion joint is often the more practical design.
This is an important engineering difference that is often overlooked during purchasing.
A metallic bellows behaves like a mechanical spring. When it is compressed, extended or laterally displaced, it generates reaction forces that must be considered in the piping design.
These forces may influence:
Fabric expansion joints generally produce much lower spring forces because the flexible textile element is considerably softer than formed metal bellows.
For large duct systems connected to fans, furnaces or lightweight structural components, reducing these reaction loads can be a major advantage.
Fans, blowers, turbines and other rotating equipment can transmit vibration into connected ductwork.
A flexible fabric connector can help isolate some of this vibration because the textile belt does not create the same rigid mechanical path as solid ductwork.
This makes fabric expansion joints especially useful around:
Metal expansion joints can also accommodate vibration, but the movement amplitude, frequency and expected cycle life must be considered carefully in the bellows design.
For high-cycle vibration, neither product should be selected solely from a general product specification. Actual vibration data should be supplied to the manufacturer.
Large rectangular ductwork strongly favors fabric construction in many industrial systems.
Consider an exhaust duct measuring several meters across. Producing a metallic flexible element for such a large cross-section requires substantial metal fabrication and careful control of corner stresses.
A rectangular fabric joint can use a flexible belt installed around the perimeter of the duct, making very large dimensions more practical.
This is why rectangular fabric expansion joints are frequently seen in:
For these applications, size alone can significantly influence the final choice.
It is incorrect to assume that metal is always better at high temperature or that fabric automatically has a lower usable process temperature.
The two systems manage temperature differently.
Metallic bellows temperature capability is determined primarily by the selected alloy, design pressure, material strength at temperature and expected fatigue life.
Stainless steels and nickel-based alloys can be selected for elevated-temperature service.
A high-temperature fabric expansion joint may use several thermal layers rather than exposing one flexible membrane directly to the process gas.
A typical construction may include:
The insulation package can reduce the temperature reaching the external sealing materials.
Therefore, a high temperature fabric expansion joint should be selected based on the full temperature gradient through the joint, not simply on the temperature rating of one fabric.
Hot flue gas and exhaust systems are among the most common applications for non-metallic designs.
These installations often combine:
That combination closely matches the strengths of fabric expansion joints.
Typical installations include:
For customized designs, BSTFLEX manufactures Non Metallic Fabric Expansion Joints for industrial ducting, hot-air, flue-gas and exhaust applications.
Corrosion resistance cannot be judged simply by comparing “fabric” with “metal.”
The actual materials must be compared.
A metallic expansion joint may use corrosion-resistant stainless steel or nickel alloy when aggressive media are present.
A fabric expansion joint may use chemical-resistant barrier layers such as PTFE-coated textiles or other compatible membrane systems.
Selection should consider:
Condensation is particularly important in flue-gas systems because chemical attack may become more severe when corrosive gases condense on cooler joint surfaces.
Neither fabric nor metallic bellows should necessarily be exposed directly to severe turbulent flow or abrasive particles without protection.
A fabric joint may use:
A metallic bellows may also require an internal liner to prevent erosion, turbulent excitation or direct impingement on the convolutions.
This means gas velocity, dust loading and flow direction should always be included in the expansion joint specification.
Available space can strongly affect the decision.
A fabric joint can often absorb considerable lateral movement within a relatively short flexible span.
Metallic systems can also accommodate large displacement, but may require more complex arrangements such as universal joints, hinged joints or gimbal configurations depending on movement direction.
However, there are also piping layouts where a compact metallic bellows is the more appropriate design.
Installation space should therefore be considered together with pressure and movement rather than as an isolated factor.
Fabric flexible elements are generally lighter than comparable large metallic assemblies.
This difference becomes increasingly important as duct dimensions increase.
Lower component weight can reduce loads during:
In very large rectangular duct systems, this can be an important practical advantage.
Fabric expansion joints are often designed with replaceable flexible belts.
If the surrounding steel frames remain serviceable, maintenance may involve replacing the flexible element rather than removing the complete assembly.
This can be useful in large duct installations where removing welded steel frames would create significant shutdown work.
Metal expansion joints generally require replacement or repair of the metallic bellows assembly when the bellows itself becomes damaged.
The actual maintenance cost depends on system design, accessibility, joint size and failure mode.
There is no meaningful universal statement such as “metal lasts longer than fabric.”
Service life depends on whether the joint was correctly designed for the application.
A fabric joint can fail prematurely because of:
A metal bellows can fail because of:
Correct engineering matters more than simply choosing one material category over another.
| Application | Usually Preferred | Reason |
|---|---|---|
| Large Low-Pressure Flue Gas Duct | Fabric Expansion Joint | Large size, flexibility and multidirectional movement |
| High-Pressure Steam Pipe | Metal Expansion Joint | Pressure containment requirement |
| Large Rectangular Exhaust Duct | Fabric Expansion Joint | Practical for large custom cross-sections |
| Fan Connection | Fabric Expansion Joint | Low reaction forces and vibration isolation |
| Pressurized Chemical Pipeline | Metal Expansion Joint | Pressure and mechanical requirements |
| Cement Kiln Exhaust Duct | Fabric Expansion Joint | Hot gas, large duct and substantial movement |
| Process Piping | Metal Expansion Joint | Engineered for piping pressure and code requirements |
| Large Boiler Flue Duct | Fabric Expansion Joint | Low-pressure hot-gas application |
A fabric expansion joint should be seriously considered when most of the following conditions are present:
This is the typical application envelope for a non metallic expansion joint.
A metallic expansion joint should normally be evaluated first when:
Metallic bellows are engineered pressure-containing components and should be designed around system pressure, temperature, movement, material, fatigue life and piping loads.
Instead of asking, “Which expansion joint is better?” engineers should ask, “Which expansion joint architecture matches this system?”
Use the following sequence.
Is it a large duct or pressurized pipe?
Specify normal pressure, design pressure and whether the system operates under positive or negative pressure.
Provide both continuous operating temperature and maximum excursion temperature.
List axial compression, axial extension, lateral displacement and angular movement individually.
Specify hot air, exhaust gas, flue gas, steam, liquid or process chemical.
Include gas velocity, dust loading, abrasive particles and turbulence.
Determine how much reaction force can safely be transferred to fans, duct supports, equipment nozzles and anchors.
Confirm shape, dimensions, flange arrangement and available face-to-face installation length.
Consider a large rectangular flue-gas duct installed downstream of industrial combustion equipment.
The system has:
In this situation, a fabric expansion joint is often an efficient choice because it can combine large cross-section capability, multidirectional flexibility and low reaction forces.
Now consider a high-pressure steam line operating at elevated temperature.
Although thermal movement still exists, the system requires reliable pressure containment. A metallic bellows engineered for the piping pressure, temperature and movement is generally the appropriate technology.
These examples demonstrate why the operating system must determine the expansion joint type.
For either metallic or fabric designs, the quality of the engineering recommendation depends heavily on the information supplied.
For a custom fabric joint, BSTFLEX recommends providing:
BSTFLEX manufactures custom non-metallic expansion joints for industrial hot-air, exhaust and flue-gas ducting systems.

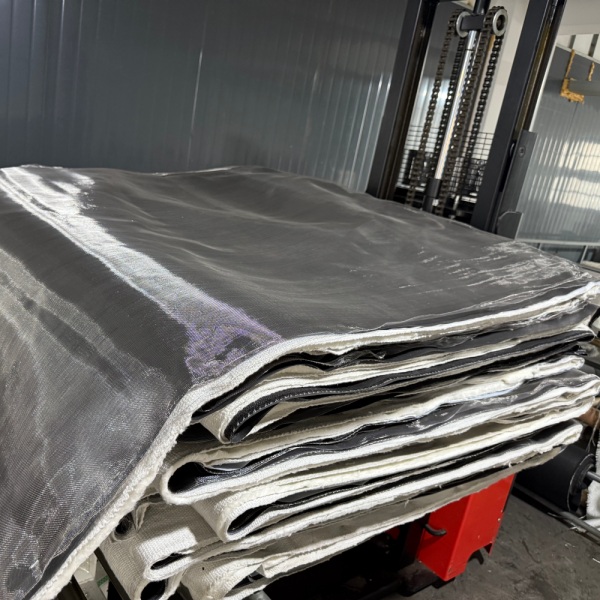

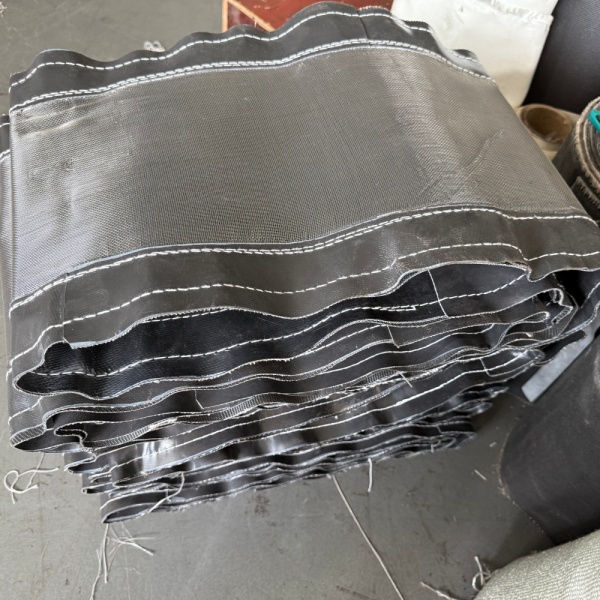

Depending on operating conditions, flexible constructions can incorporate technical fabrics, coated fiberglass, PTFE-based sealing layers, high-temperature insulation and protective components.
Round, rectangular and application-specific configurations can be manufactured according to customer drawings and operating data.
See the BSTFLEX Non Metallic Fabric Expansion Joint for custom manufacturing options.
If your application uses a large industrial duct carrying hot air, exhaust gas or flue gas, send BSTFLEX your drawing and operating conditions for evaluation.
Include duct dimensions, temperature, pressure, media, axial movement, lateral movement, face-to-face length and quantity.
